ProductsSP60 Self Propelled Aerial Order Picker with 4m lifting height
Self Propelled Stock Picker SP60
Aerial Order PickerNewPopularRecommendedPremium

SP60 Self Propelled Aerial Order Picker with 4m lifting height

1. Carrying one person with weight less than 136kg capacity up to 4m height. 2. Electric move, Electric lift, 2 × 12 V/150 Ah battery, free maintenance. 3. 110-220 V Build-in charger solution, 8 hrs charging time 4. Turning radius: 55’’ , 15% Grade-ability 5. Wheel type: Non-marking, Anti-Skid Solid Rubber 6. Drive motor: 0.8-1.2 KW, Driving speed: from 1 to 3.36 mph with choice. 7. Product weight: 635kgs 8. Ground clearance: 57mm

Contact Us
⚡ NEW | Self Propelled Aerial Work

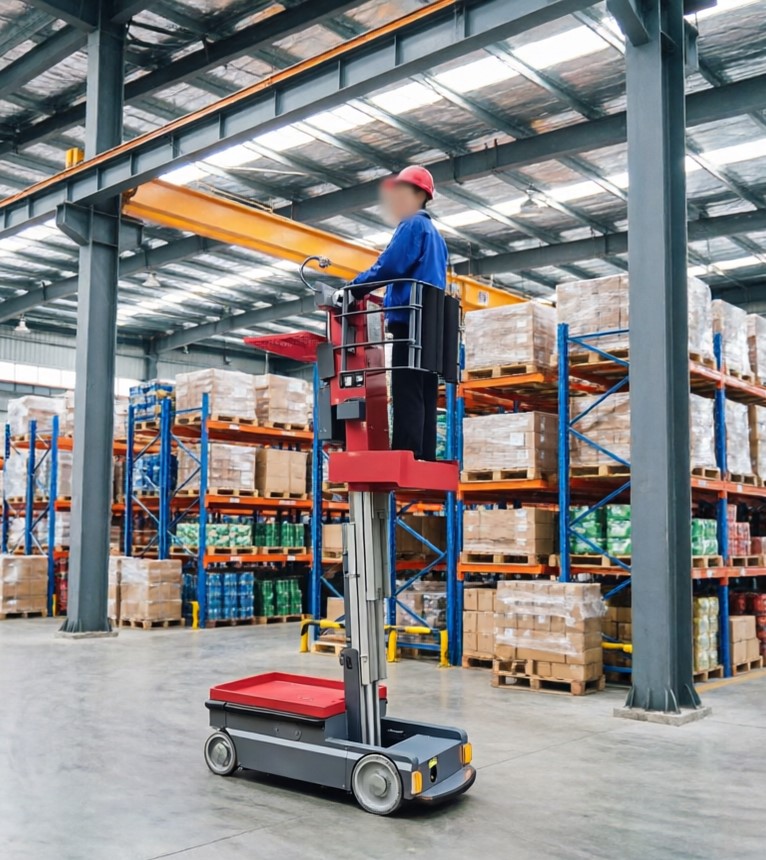

SP60 Self Propelled Aerial Order Picker
Model: SP60 | 136kg Operator Capacity | 4m Lifting Height (6m Working Height)
The SP60 is a high-performance self-propelled electric order picker engineered for aerial picking tasks up to 6 meters working height. With aircraft-grade aluminum alloy mast, active front steering + rear drive, and intelligent driving assistance, it ensures safety and productivity in warehouses, distribution centers, and retail backrooms.
🔼 4m Platform Height 🔄 Active Steering + Rear Drive ⚙️ Proportional Control
🔋 250 lifts + 8.5km endurance 🧰 Removable Toolbox ✅ CE Certified | Global Support

Key Advantages – SP60

🏗️

High-strength Aluminum Alloy Mast

Aircraft-grade aluminum elevating mechanism ensures smooth and stable raising/lowering, ideal for repetitive high-frequency operation.
🚜

Active Front Steering + Rear Bridge Drive

Avoids direction loss on uneven ground; superior walking performance and maneuverability even with full load.
🧠

Intelligent Driving Assistance

Steering wheel automatically returns to center when released – reduces operator effort, increases reaction speed.
🎮

Ergonomic Proportional Control

Proportional valve handles deliver smooth, accurate driving and lifting control, minimizing fatigue during long shifts.
💡

LED Auxiliary Work Lights

Integrated LED lighting improves visibility in dim warehouses, enhancing safety during night shifts or low-light conditions.
🧰

Removable Tool Box

Convenient detachable toolbox for storing hand tools, tape, or picking accessories – always within reach.

Technical Specifications – SP60

Model
SP60
📐 DIMENSIONS
Max. Platform Height
4000mm (4.0m)
Max. Working Height
6000mm (6.0m)
Platform Size (L×W)
696 × 564 mm
Platform Entry Height
350 mm
Occupants (Platform)
1 person
Stowed Length × Width × Height
1660 × 750 × 1528 mm
Machine Weight (reference)
635 kg
⚖️ LOAD CAPACITIES
Operator Compartment Capacity
136 kg
Powered Cargo Shelf Capacity
60 kg
Ground Cargo Shelf Capacity
85 kg
🚀 PERFORMANCE
Moving Method
Self Propelled (Electric)
Drive Speed (Level 1/2/3)
5.4 km/h / 3.2 km/h / 1.6 km/h
Driving System
Proportional Joystick
Platform Cycle Time (Raise/Lower)
Raise 18 sec / Lower 20 sec
Max. Steering Angle
80°
Turning Radius (Outside / Inside)
1.8 m / ~0 m
Climb Ability
15% (gradeability)
Max. Allowed Wind Speed
12.5 m/s
Rated Oil Pressure
10 MPa
Maximum Horizontal Lateral Force
200 Newtons
Tires
Non-marking, Anti-Skid Solid Rubber
Battery Durable Time
250 lifting cycles + 8.5 km driving
🔋 POWER SOURCE
Power Supply
DC 24V
Power Input
0.8 – 1.2 kW
Battery
12V / 150Ah × 2 pieces (24V system)
Recharge Power Supply
220V AC or 110V AC (universal charging)
* Product specifications are subject to change without notice. Contact Outstrip for custom configurations.
