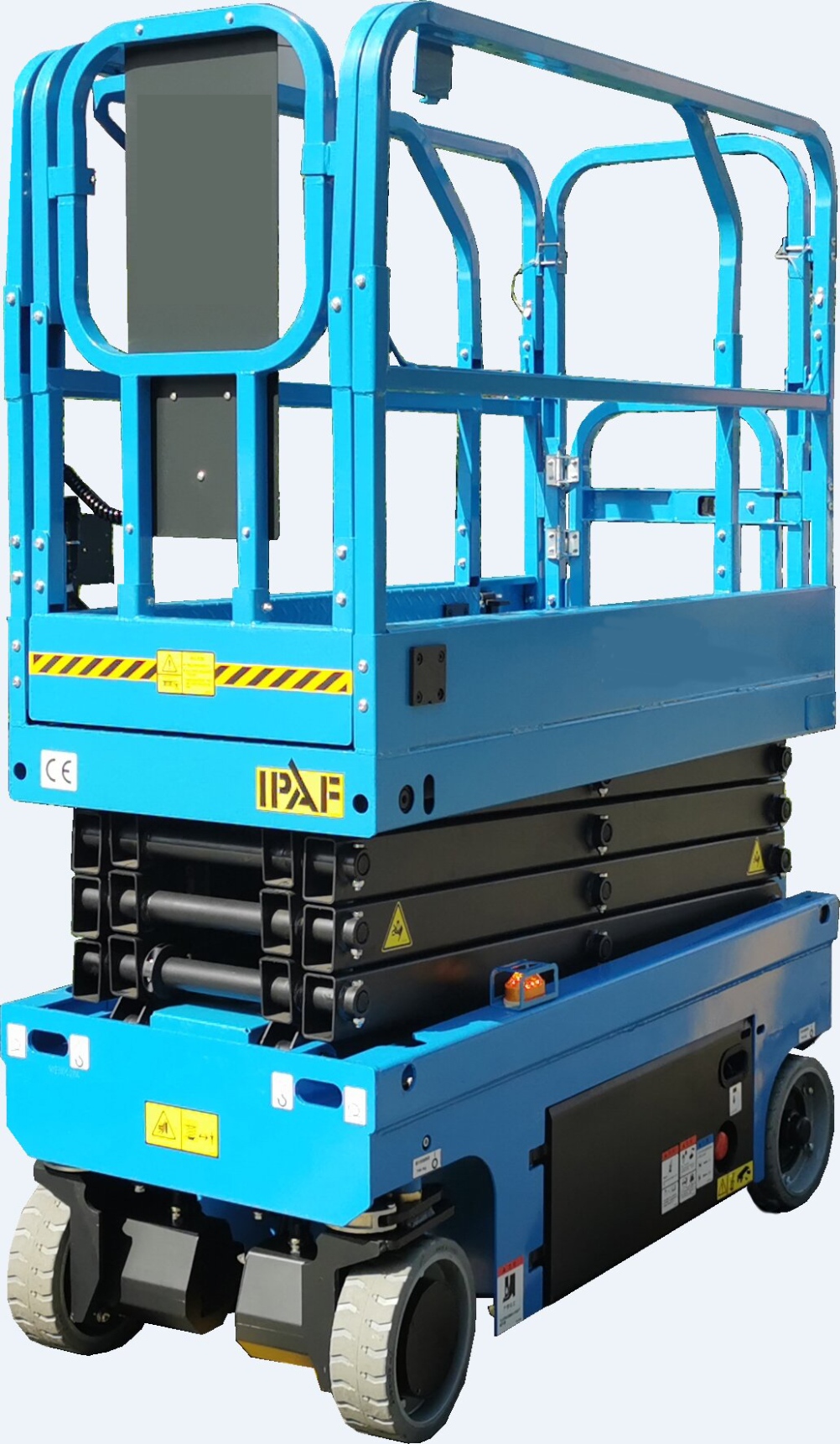

1. Self-propelled electric aerial work platforms designed for tight spaces, lightconstruction, facility maintenance, and warehouse operations.; 2. Zero emissions, 100% electric quiet operation; 3. Narrow chassis; 4. Working height 5.9-7.8m 5. Capacity: 240kg
Only 0.76m wide — passes through standard doorways and narrow aisles. SC06E and SC08EC are ideal for crowded facilities, retail spaces, and server rooms.
SC08EC rated for 1 worker outdoor, enabling facade maintenance, exterior cleaning, and light outdoor construction with weather-protected controls.
SC06E: 2x12V/85Ah with 24V/15A charger; SC08EC: 4x6V/220Ah deep-cycle batteries plus 24V/30A integrated charger — full day productivity.
0.6m (SC06E) / 0.9m (SC08EC) extension adds valuable reach. Extension load capacity 100kg / 113kg — carry tools right to the work point.
Pothole protection, tilt sensor, emergency descent, dual proportional controls, and slope warning (1.5°/3°) ensure safe operation.
SC06E travel speed 4.0 km/h (stowed), SC08EC 4.5 km/h. Tight turning radius (1.55m / 1.75m) for excellent maneuverability.
| Model | Load capacity (kg) | Workers indoor | Workers outdoor | Working height (m) | Platform height (m) | Overall length (m) | Overall width (m) | Height (rails up) (m) | Height (rails down) (m) | Platform size (m) | Extension length (m) | Load on extension (kg) | Ground clearance low. (m) | Ground clearance raised (m) | Turning radius (m) | Lifting motor | Drive motor | Travel speed (stowed) (km/h) | Travel speed (raised) (km/h) | Up/down time (s) | Batteries | Charger | Gradeability | Max. slope indoor | Machine weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC06E | 240 | 2 | — | 5.9 | 3.9 | 1.44 | 0.76 | 2.03 | 1.87 | 1.29x0.70 | 0.6 | 100 | 0.06 | 0.015 | 1.55 | 24V/0.8kw | 24V/0.4kw | 4.0 | 0.5 | 25/27 | 2x12V/85Ah | 24V/15A | 25% | 1.5°/3° | 890 |
| SC08EC | 230 | 2 | 1 | 7.8 | 5.8 | 1.89 | 0.76 | 2.18 | 1.78 | 1.67x0.74 | 0.9 | 113 | 0.07 | 0.015 | 1.75 | 24V/2.0kw | 24V/0.5kw | 4.5 | 0.8 | 23/32 | 4x6V/220Ah | 24V/30A | 25% | 1.5°/3° | 1520 |
Warehouse picking, drywall installation, electrical & plumbing maintenance, retail display mounting, school gymnasium maintenance, light exterior work (SC08EC).
Perfect for indoor environments like hospitals, supermarkets, and cleanrooms. Operate alongside people with minimal disturbance.
Proportional lift and drive, ground/platform dual control stations with diagnostic display. Short learning curve for operators.
Sealed connectors, self-lubricated joints, and easy-access battery compartment reduce service time and costs.
Low stowed height (1.87m / 1.78m) allows easy transport in standard vans or cargo lifts; optional fork pockets.
